De novo RNA-Seq Assembly and Analysis

De novo RNA-Seq Assembly and Analysis Using Trinity

The following details the steps involved in:

• Generating a Trinity de novo RNA-Seq assembly
• Evaluating the quality of the assembly
• Quantifying transcript expression levels
• Identifying differentially expressed (DE) transcripts
• Functionally annotating transcripts using Trinotate and predicting coding regions using TransDecoder
• Examining functional enrichments for DE transcripts using GOseq
• Interactively Exploring annotations and expression data via TrinotateWeb

All required software and data are provided pre-installed on an Amazon EC2 AMI.

The workshop materials here expect that you have basic familiarity with UNIX.

After launching and connecting to your running instance of the AMI, change your working directory to your workspace:

cd ~/workspace


and for the sake of organization, create a directory called ‘trinity_workspace’ that you’ll work in for today’s exercises.

mkdir trinity_workspace

cd trinity_workspace


Before We Begin

Below, we refer to ‘%’ as the terminal command prompt, and we use environmental variables such as $TRINITY_HOME and$TRINOTATE_HOME as shortcuts to referring to their installation directories in the AMI image.

To configure your environment and set these variables, source the following settings:

source ~/CourseData/RNA_data/trinity_trinotate_tutorial/OICR_RNASeq_2017_Workshop/Day3_Trinity/environment.txt


Now, to view the path to where Trinity is installed, you can simply:

echo $TRINITY_HOME  Some commands can be fairly long to type in, and so they’ll be more easily displayed in this document, we separate parts of the command with ‘’ characters and put the rest of the command on the following line. Similarly in unix you can type ‘[return]’ and you can continue to type in the rest of the command on the new line in the terminal. For viewing text files, we’ll use the unix utilities ‘head’ (look at the top few lines), ‘cat’ (print the entire contents of the file), and ‘less’ (interactively page through the file), and for viewing PDF formatted files, we’ll use the ‘xpdf’ viewer utility. Data Content: For this course we will be using the data from this paper: [Defining the transcriptomic landscape of Candida glabrata by RNA-Seq. Linde et al. Nucleic Acids Res. 2015. This work provides a detailed RNA-Seq-based analysis of the transcriptomic landscape of C. glabrata in nutrient-rich media (WT), as well as under nitrosative stress (GSNO), in addition to other conditions, but we’ll restrict ourselves to just WT and GSNO conditions for demonstration purposes in this workshop. There are paired-end FASTQ formatted Illlumina read files for each of the two conditions, with three biological replicates for each. Copy the data over to your workspace like so: cp -r ~/CourseData/RNA_data/trinity_trinotate_tutorial/seq_data data  All RNA-Seq data sets can be found in your new data/ subdirectory: ls -1 data | grep fastq GSNO_SRR1582646_1.fastq GSNO_SRR1582646_2.fastq GSNO_SRR1582647_1.fastq GSNO_SRR1582647_2.fastq GSNO_SRR1582648_1.fastq GSNO_SRR1582648_2.fastq wt_SRR1582649_1.fastq wt_SRR1582649_2.fastq wt_SRR1582650_1.fastq wt_SRR1582650_2.fastq wt_SRR1582651_1.fastq wt_SRR1582651_2.fastq  Each biological replicate (eg. wt_SRR1582651) contains a pair of fastq files (eg. wt_SRR1582651_1.fastq.gz for the ‘left’ and wt_SRR1582651_2.fastq.gz for the ‘right’ read of the paired end sequences). Normally, each file would contain millions of reads, but in order to reduce running times as part of the workshop, each file provided here is restricted to only 10k RNA-Seq reads. It’s generally good to evaluate the quality of your input data using a tool such as FASTQC. Since exploration of FASTQC reports has already been done in a previous section of this workshop, we’ll skip doing it again here - and trust that the quality of these reads meet expectations. Finally, another set of files that you will find in the data include ‘mini_sprot.pep*’, corresponding to a highly abridged version of the SWISSPROT database, containing only the subset of protein sequences that are needed for use in this workshop. It’s provided and used here only to speed up certain operations, such as BLAST searches, which will be performed at several steps in the tutorial below. Of course, in exploring your own RNA-Seq data, you would leverage the full version of SWISSPROT and not this tiny subset used here. De novo assembly of reads using Trinity To generate a reference assembly that we can later use for analyzing differential expression, we’ll combine the read data sets for the different conditions together into a single target for Trinity assembly. We do this by providing Trinity with a list of all the left and right fastq files to the –left and –right parameters as comma-delimited like so: ${TRINITY_HOME}/Trinity --seqType fq  \
--left data/wt_SRR1582649_1.fastq,data/wt_SRR1582651_1.fastq,data/wt_SRR1582650_1.fastq,data/GSNO_SRR1582648_1.fastq,data/GSNO_SRR1582646_1.fastq,data/GSNO_SRR1582647_1.fastq \
--right data/wt_SRR1582649_2.fastq,data/wt_SRR1582651_2.fastq,data/wt_SRR1582650_2.fastq,data/GSNO_SRR1582648_2.fastq,data/GSNO_SRR1582646_2.fastq,data/GSNO_SRR1582647_2.fastq \
--CPU 2 --max_memory 2G --min_contig_length 150


Running Trinity on this data set may take 10 to 15 minutes. You’ll see it progress through the various stages, starting with Jellyfish to generate the k-mer catalog, then followed by Inchworm to assemble ‘draft’ contigs, Chrysalis to cluster the contigs and build de Bruijn graphs, and finally Butterfly for tracing paths through the graphs and reconstructing the final isoform sequences.

Running a typical Trinity job requires ~1 hour and ~1G RAM per ~1 million PE reads. You’d normally run it on a high-memory machine and let it churn for hours or days.

The assembled transcripts will be found at ‘trinity_out_dir/Trinity.fasta’.

Just to look at the top few lines of the assembled transcript fasta file, you can run:

head trinity_out_dir/Trinity.fasta


and you can see the Fasta-formatted Trinity output:

    >TRINITY_DN506_c0_g1_i1 len=171 path=[149:0-170] [-1, 149, -2]
TGAGTATGGTTTTGCCGGTTTGGCTGTTGGTGCAGCTTTGAAGGGCCTAAAGCCAATTGT
TGAATTCATGTCATTCAACTTCTCCATGCAAGCCATTGACCATGTCGTTAACTCGGCAGC
AAAGACACATTATATGTCTGGTGGTACCCAAAAATGTCAAATCGTGTTCAG
>TRINITY_DN512_c0_g1_i1 len=168 path=[291:0-167] [-1, 291, -2]
ATATCAGCATTAGACAAAAGATTGTAAAGGATGGCATTAGGTGGTCGAAGTTTCAGGTCT
AAGAAACAGCAACTAGCATATGACAGGAGTTTTGCAGGCCGGTATCAGAAATTGCTGAGT
AAGAACCCATTCATATTCTTTGGACTCCCGTTTTGTGGAATGGTGGTG
>TRINITY_DN538_c0_g1_i1 len=310 path=[575:0-309] [-1, 575, -2]
GTTTTCCTCTGCGATCAAATCGTCAAACCTTAGACCTAGCTTGCGGTAACCAGAGTACTT


Note, the sequences you see will likely be different, as the order of sequences in the output is not deterministic.

The FASTA sequence header for each of the transcripts contains the identifier for the transcript (eg. ‘TRINITY_DN506_c0_g1_i1’), the length of the transcript, and then some information about how the path was reconstructed by the software by traversing nodes within the graph.

It is often the case that multiple isoforms will be reconstructed for the same ‘gene’. Here, the ‘gene’ identifier corresponds to the prefix of the transcript identifier, such as ‘TRINITY_DN506_c0_g1’, and the different isoforms for that ‘gene’ will contain different isoform numbers in the suffix of the identifier (eg. TRINITY_DN506_c0_g1_i1 and TRINITY_DN506_c0_g1_i2 would be two different isoform sequences reconstructed for the single gene TRINITY_DN506_c0_g1). It is useful to perform certain downstream analyses, such as differential expression, at both the ‘gene’ and at the ‘isoform’ level, as we’ll do later below.

Evaluating the assembly

There are several ways to quantitatively as well as qualitatively assess the overall quality of the assembly, and we outline many of these methods at our Trinity wiki.

Assembly Statistics that are NOT very useful

You can count the number of assembled transcripts by using ‘grep’ to retrieve only the FASTA header lines and piping that output into ‘wc’ (word count utility) with the ‘-l’ parameter to just count the number of lines.

    % grep '>' trinity_out_dir/Trinity.fasta | wc -l


How many were assembled?

It’s useful to know how many transcript contigs were assembled, but it’s not very informative. The deeper you sequence, the more transcript contigs you will be able to reconstruct. It’s not unusual to assemble over a million transcript contigs with very deep data sets and complex transcriptomes, but as you ‘ll see below (in the section containing the more informative guide to assembly assessment) a fraction of the transcripts generally best represent the input RNA-Seq reads.

Examine assembly stats

Capture some basic statistics about the Trinity assembly:

TRINITY_HOME/util/TrinityStats.pl trinity_out_dir/Trinity.fasta  which should generate data like so. Note your numbers may vary slightly, as the assembly results are not deterministic.  ################################ ## Counts of transcripts, etc. ################################ Total trinity 'genes': 683 Total trinity transcripts: 687 Percent GC: 44.39 ######################################## Stats based on ALL transcript contigs: ######################################## Contig N10: 742 Contig N20: 525 Contig N30: 423 Contig N40: 346 Contig N50: 300 Median contig length: 216 Average contig: 279.85 Total assembled bases: 192257 ##################################################### ## Stats based on ONLY LONGEST ISOFORM per 'GENE': ##################################################### Contig N10: 728 Contig N20: 524 Contig N30: 420 Contig N40: 343 Contig N50: 296 Median contig length: 215 Average contig: 278.14 Total assembled bases: 189969  The total number of reconstructed transcripts should match up identically to what we counted earlier with our simple ‘grep | wc’ command. The total number of ‘genes’ is also reported - and simply involves counting up the number of unique transcript identifier prefixes (without the _i isoform numbers). When the ‘gene’ and ‘transcript’ identifiers differ, it’s due to transcripts being reported as alternative isoforms for the same gene. In our tiny example data set, we unfortunately do not reconstruct any alternative isoforms, and note that alternative splicing in this yeast species may be fairly rare. Tackling an insect or mammal transcriptome would be expected to yeild many alternative isoforms. You’ll also see ‘Contig N50’ values reported. You’ll remmeber from the earlier lectures on genome assembly that the ‘N50 statistic indicates that at least half of the assembled bases are in contigs of at least that contig length’. We extend the N50 statistic to provide N40, N30, etc. statistics with similar meaning. As the N-value is decreased, the corresponding length will increase. Most of this is not quantitatively useful, and the values are only reported for historical reasons - it’s simply what everyone used to do in the early days of transcriptome assembly. The N50 statistic in RNA-Seq assembly can be easily biased in the following ways: • Overzealous reconstruction of long alternatively spliced isoforms: If an assembler tends to generate many different ‘versions’ of splicing for a gene, such as in a combinatorial way, and those isoforms tend to have long sequence lengths, the N50 value will be skewed towards a higher value. • Highly sensitive reconstruction of lowly expressed isoforms: If an assembler is able to reconstruct transcript contigs for those transcirpts that are very lowly expressed, these contigs will tend to be short and numerous, biasing the N50 value towards lower values. As one sequences deeper, there will be more evidence (reads) available to enable reconstruction of these short lowly expressed transcripts, and so deeper sequencing can also provide a downward skew of the N50 value. Assembly statistics that are MORE useful We now move into the section containing more meaningful metrics for evaluating your transcriptome assembly. Representation of reads A high quality transcriptome assembly is expected to have strong representation of the reads input to the assembler. By aligning the RNA-Seq reads back to the transcriptome assembly, we can quantify read representation. Use the Bowtie2 aligner to align the reads to the Trinity assembly, and in doing so, take notice of the read representation statistics reported by the bowtie2 aligner. First build a bowtie2 index for the Trinity assembly, required before running the alignment: bowtie2-build trinity_out_dir/Trinity.fasta trinity_out_dir/Trinity.fasta  Now, align the reads to the assembly: bowtie2 --local --no-unal -x trinity_out_dir/Trinity.fasta \ -q -1 data/wt_SRR1582651_1.fastq -2 data/wt_SRR1582651_2.fastq \ | samtools view -Sb - | samtools sort -o bowtie2.coordSorted.bam [bam_header_read] EOF marker is absent. The input is probably truncated. [samopen] SAM header is present: 686 sequences. 10000 reads; of these: 10000 (100.00%) were paired; of these: 6922 (69.22%) aligned concordantly 0 times 2922 (29.22%) aligned concordantly exactly 1 time 156 (1.56%) aligned concordantly >1 times ---- 6922 pairs aligned concordantly 0 times; of these: 191 (2.76%) aligned discordantly 1 time ---- 6731 pairs aligned 0 times concordantly or discordantly; of these: 13462 mates make up the pairs; of these: 12476 (92.68%) aligned 0 times 752 (5.59%) aligned exactly 1 time 234 (1.74%) aligned >1 times 37.62% overall alignment rate  Generally, in a high quality assembly, you would expect to see at least ~70% and at least ~70% of the reads to exist as proper pairs. Our tiny read set used here in this workshop does not provide us with a high quality assembly, as only ~30% of aligned reads are mapped as proper pairs - which is usually the sign of a fractured assembly. In this case, deeper sequencing and assembly of more reads would be expected to lead to major improvements here. Assess number of full-length coding transcripts Another very useful metric in evaluating your assembly is to assess the number of fully reconstructed coding transcripts. This can be done by performing a BLASTX search of your assembled transcript sequences to a high quality database of protein sequences, such as provided by SWISSPROT. Searching a large protein database using BLASTX can take a while - longer than we want during this workshop, so instead, we’ll search the mini-version of SWISSPROT that comes installed in our data/ directory: blastx -query trinity_out_dir/Trinity.fasta \ -db data/mini_sprot.pep -out blastx.outfmt6 \ -evalue 1e-20 -num_threads 2 -max_target_seqs 1 -outfmt 6  The above blastx command will have generated an output file ‘blastx.outfmt6’, storing only the single best matching protein given the E-value threshold of 1e-20. By running another script in the Trinity suite, we can compute the length representation of best matching SWISSPROT matches like so: TRINITY_HOME/util/analyze_blastPlus_topHit_coverage.pl \
blastx.outfmt6 trinity_out_dir/Trinity.fasta \
data/mini_sprot.pep | column -t

#hit_pct_cov_bin  count_in_bin  >bin_below
100     78      78
90      18      96
80      11      107
70      19      126
60      15      141
50      24      165
40      33      198
30      40      238
20      62      300
10      24      324


The above table lists bins of percent length coverage of the best matching protein sequence along with counts of proteins found within that bin. For example, 78 proteins are matched by more than 90% of their length up to 100% of their length. There are 18 matched by more than 80% and up to 90% of their length. The third column provides a running total, indicating that 96 transcripts match more than 80% of their length, and 107 transcripts match more than 70% of their length, etc.

The count of full-length transcripts is going to be dependent on how good the assembly is in addition to the depth of sequencing, but should saturate at higher levels of sequencing. Performing this full-length transcript analysis using assemblies at different read depths and plotting the number of full-length transcripts as a function of sequencing depth will give you an idea of whether or not you’ve sequenced deeply enough or you should consider doing more RNA-Seq to capture more transcripts and obtain a better (more complete) assembly.

We’ll explore some additional metrics that are useful in assessing the assembly quality below, but they require that we estimate expression values for our transcripts, so we’ll tackle that first.

Transcript expression quantitation using RSEM

To estimate the expression levels of the Trinity-reconstructed transcripts, we use the strategy supported by the RSEM software involving read alignment followed by expectation maximization to assign reads according to maximum likelihood estimates. In essence, we first align the original rna-seq reads back against the Trinity transcripts, then run RSEM to estimate the number of rna-seq fragments that map to each contig. Because the abundance of individual transcripts may significantly differ between samples, the reads from each sample (and each biological replicate) must be examined separately, obtaining sample-specific abundance values.

We include a script to faciliate running of RSEM on Trinity transcript assemblies. The script we execute below will run the Bowtie aligner to align reads to the Trinity transcripts, and RSEM will then evaluate those alignments to estimate expression values. Again, we need to run this separately for each sample and biological replicate (ie. each pair of fastq files).

Let’s start with one of the GSNO treatment fastq pairs like so:

TRINITY_HOME/util/align_and_estimate_abundance.pl --seqType fq \ --left data/GSNO_SRR1582648_1.fastq \ --right data/GSNO_SRR1582648_2.fastq \ --transcripts trinity_out_dir/Trinity.fasta \ --output_prefix GSNO_SRR1582648 \ --est_method RSEM --aln_method bowtie2 \ --trinity_mode --prep_reference \ --output_dir GSNO_SRR1582648.RSEM  The outputs generated from running the command above will exist in the GSNO_SRR1582648.RSEM/ directory, as we indicate with the –output_dir parameter above. The primary output generated by RSEM is the file containing the expression values for each of the transcripts. Examine this file like so: head GSNO_SRR1582648.RSEM/GSNO_SRR1582648.isoforms.results | column -t transcript_id gene_id length effective_length expected_count TPM FPKM IsoPct TRINITY_DN0_c0_g1_i1 TRINITY_DN0_c0_g1 328 198.75 29.00 9093.16 43883.19 100.00 TRINITY_DN0_c0_g2_i1 TRINITY_DN0_c0_g2 329 199.75 0.00 0.10 0.48 100.00 TRINITY_DN100_c0_g1_i1 TRINITY_DN100_c0_g1 198 69.79 1.00 892.99 4309.53 100.00 TRINITY_DN101_c0_g1_i1 TRINITY_DN101_c0_g1 233 104.12 2.00 1197.08 5777.04 100.00 TRINITY_DN102_c0_g1_i1 TRINITY_DN102_c0_g1 198 69.79 0.00 0.00 0.00 0.00 TRINITY_DN103_c0_g1_i1 TRINITY_DN103_c0_g1 346 216.72 7.00 2012.95 9714.40 100.00 TRINITY_DN104_c0_g1_i1 TRINITY_DN104_c0_g1 264 134.91 1.00 461.94 2229.29 100.00 TRINITY_DN105_c0_g1_i1 TRINITY_DN105_c0_g1 540 410.62 19.00 2883.65 13916.35 100.00 TRINITY_DN106_c0_g1_i1 TRINITY_DN106_c0_g1 375 245.67 3.00 761.01 3672.58 100.00  The key columns in the above RSEM output are the transcript identifier, the ‘expected_count’ corresponding to the number of RNA-Seq fragments predicted to be derived from that transcript, and the ‘TPM’ or ‘FPKM’ columns, which provide normalized expression values for the expression of that transcript in the sample. The FPKM expression measurement normalizes read counts according to the length of transcripts from which they are derived (as longer transcripts generate more reads at the same expression level), and normalized according to sequencing depth. The FPKM acronym stand for ‘fragments per kilobase of cDNA per million fragments mapped’. TPM ‘transcripts per million’ is generally the favored metric, as all TPM values should sum to 1 million, and TPM nicely reflects the relative molar concentration of that transcript in the sample. FPKM values, on the other hand, do not always sum to the same value, and do not have the similar property of inherrently representing a proportion within a sample, making comparisons between samples less straightforward. TPM values can be easily computed from FPKM values like so: TPMi = FPKMi / (sum all FPKM values) * 1 million. Note, a similar RSEM outputted gene expression file exists for the ‘gene’ level expression data. For example: head GSNO_SRR1582648.RSEM/GSNO_SRR1582648.genes.results | column -t gene_id transcript_id(s) length effective_length expected_count TPM FPKM TRINITY_DN0_c0_g1 TRINITY_DN0_c0_g1_i1 328.00 198.75 29.00 9093.16 43883.19 TRINITY_DN0_c0_g2 TRINITY_DN0_c0_g2_i1 329.00 199.75 0.00 0.10 0.48 TRINITY_DN100_c0_g1 TRINITY_DN100_c0_g1_i1 198.00 69.79 1.00 892.99 4309.53 TRINITY_DN101_c0_g1 TRINITY_DN101_c0_g1_i1 233.00 104.12 2.00 1197.08 5777.04 TRINITY_DN102_c0_g1 TRINITY_DN102_c0_g1_i1 198.00 69.79 0.00 0.00 0.00 TRINITY_DN103_c0_g1 TRINITY_DN103_c0_g1_i1 346.00 216.72 7.00 2012.95 9714.40 TRINITY_DN104_c0_g1 TRINITY_DN104_c0_g1_i1 264.00 134.91 1.00 461.94 2229.29 TRINITY_DN105_c0_g1 TRINITY_DN105_c0_g1_i1 540.00 410.62 19.00 2883.65 13916.35 TRINITY_DN106_c0_g1 TRINITY_DN106_c0_g1_i1 375.00 245.67 3.00 761.01 3672.58  Run RSEM on each of the remaining five pairs of samples. Running this on all the samples can be montonous, and with many more samples, advanced users would generally write a short script to fully automate this process. We won’t be scripting here, but instead just directly execute abundance estimation just as we did above but on the other five pairs of fastq files. We’ll examine the outputs of each in turn, as a sanity check and also just for fun. Process fastq pair 2: TRINITY_HOME/util/align_and_estimate_abundance.pl --seqType fq  \
--left data/GSNO_SRR1582646_1.fastq \
--right data/GSNO_SRR1582646_2.fastq \
--transcripts trinity_out_dir/Trinity.fasta \
--output_prefix GSNO_SRR1582646 \
--est_method RSEM  --aln_method bowtie2 --trinity_mode \
--output_dir GSNO_SRR1582646.RSEM


Process fastq pair 3:

TRINITY_HOME/util/align_and_estimate_abundance.pl --seqType fq \ --left data/GSNO_SRR1582647_1.fastq \ --right data/GSNO_SRR1582647_2.fastq \ --transcripts trinity_out_dir/Trinity.fasta \ --output_prefix GSNO_SRR1582647 \ --est_method RSEM --aln_method bowtie2 --trinity_mode \ --output_dir GSNO_SRR1582647.RSEM  Now we’re done with processing the GSNO-treated biological replicates, and we’ll proceed to now run abundance estimations for the WT samples. Process fastq pair 4: TRINITY_HOME/util/align_and_estimate_abundance.pl       --seqType fq \
--left data/wt_SRR1582649_1.fastq \
--right data/wt_SRR1582649_2.fastq \
--transcripts trinity_out_dir/Trinity.fasta \
--output_prefix wt_SRR1582649 \
--est_method RSEM  --aln_method bowtie2 --trinity_mode \
--output_dir wt_SRR1582649.RSEM


Process fastq pair 5:

TRINITY_HOME/util/align_and_estimate_abundance.pl --seqType fq \ --left data/wt_SRR1582651_1.fastq \ --right data/wt_SRR1582651_2.fastq \ --transcripts trinity_out_dir/Trinity.fasta \ --output_prefix wt_SRR1582651 \ --est_method RSEM --aln_method bowtie2 --trinity_mode \ --output_dir wt_SRR1582651.RSEM  Process fastq pair 6 (last one!!): TRINITY_HOME/util/align_and_estimate_abundance.pl       --seqType fq \
--left data/wt_SRR1582650_1.fastq \
--right data/wt_SRR1582650_2.fastq \
--transcripts trinity_out_dir/Trinity.fasta \
--output_prefix wt_SRR1582650\
--est_method RSEM  --aln_method bowtie2   --trinity_mode \
--output_dir wt_SRR1582650.RSEM

Generate a transcript counts matrix and perform cross-sample normalization:

Now, given the expression estimates for each of the transcripts in each of the samples, we’re going to pull together all values into matrices containing transcript IDs in the rows, and sample names in the columns. We’ll make two matrices, one containing the estimated counts, and another containing the TPM expression values that are cross-sample normalized using the TMM method. This is all done for you by the following script in Trinity, indicating the method we used for expresssion estimation and providing the list of individual sample abundance estimate files:

$TRINITY_HOME/util/abundance_estimates_to_matrix.pl --est_method RSEM \ --out_prefix Trinity_trans \ GSNO_SRR1582648.RSEM/GSNO_SRR1582648.isoforms.results \ GSNO_SRR1582646.RSEM/GSNO_SRR1582646.isoforms.results \ GSNO_SRR1582647.RSEM/GSNO_SRR1582647.isoforms.results \ wt_SRR1582649.RSEM/wt_SRR1582649.isoforms.results \ wt_SRR1582651.RSEM/wt_SRR1582651.isoforms.results \ wt_SRR1582650.RSEM/wt_SRR1582650.isoforms.results  You should find a matrix file called ‘Trinity_trans.counts.matrix’, which contains the counts of RNA-Seq fragments mapped to each transcript. Examine the first few lines of the counts matrix: head -n20 Trinity_trans.counts.matrix | column -t GSNO_SRR1582646 GSNO_SRR1582648 GSNO_SRR1582647 wt_SRR1582649 wt_SRR1582650 wt_SRR1582651 TRINITY_DN562_c0_g1_i1 0.00 0.00 0.00 1.00 1.00 2.00 TRINITY_DN355_c0_g1_i1 0.00 0.00 1.00 2.00 0.00 1.00 TRINITY_DN512_c0_g1_i1 0.00 1.00 1.00 0.00 0.00 0.00 TRINITY_DN229_c0_g1_i1 1.00 0.00 0.00 2.00 4.00 2.00 TRINITY_DN252_c0_g1_i1 1.00 1.00 1.00 2.00 3.00 3.00 TRINITY_DN585_c0_g1_i1 0.00 0.00 0.00 2.00 2.00 2.00 TRINITY_DN417_c0_g1_i1 0.00 0.00 0.00 0.00 2.00 0.00 TRINITY_DN453_c0_g1_i1 0.00 0.00 0.00 1.00 2.00 2.00 TRINITY_DN620_c0_g1_i1 3.00 4.00 4.00 3.00 1.00 0.00 TRINITY_DN99_c0_g1_i1 1.00 1.00 0.00 1.00 0.00 2.00 TRINITY_DN300_c0_g1_i1 0.00 1.00 1.00 0.00 1.00 0.00 TRINITY_DN283_c0_g1_i1 0.00 0.00 0.00 3.00 1.00 1.00 TRINITY_DN80_c0_g1_i1 4.00 4.00 11.00 10.00 8.00 6.00 TRINITY_DN460_c0_g1_i1 1.00 0.00 1.00 7.00 1.00 4.00 TRINITY_DN604_c0_g1_i1 1.00 0.00 1.00 0.00 0.00 0.00 TRINITY_DN472_c0_g1_i1 2.00 4.00 2.00 5.00 3.00 2.00 TRINITY_DN621_c0_g1_i1 3.00 2.00 4.00 3.00 2.00 6.00 TRINITY_DN553_c0_g1_i1 1.00 2.00 1.00 1.00 0.00 2.00 TRINITY_DN615_c0_g1_i1 0.00 1.00 1.00 0.00 0.00 2.00  You’ll see that the above matrix has integer values representing the number of RNA-Seq paired-end fragments that are estimated to have been derived from that corresponding transcript in each of the samples. Don’t be surprised if you see some values that are not exact integers but rather fractional read counts. This happens if there are multiply-mapped reads (such as to common sequence regions of different isoforms), in which case the multiply-mapped reads are fractionally assigned to the corresponding transcripts according to their maximum likelihood. The counts matrix will be used by edgeR (or other tools in Bioconductor) for statistical analysis and identifying significantly differentially expressed transcripts. Now take a look at the first few lines of the normalized expression matrix: head -n20 Trinity_trans.TMM.EXPR.matrix | column -t GSNO_SRR1582646 GSNO_SRR1582648 GSNO_SRR1582647 wt_SRR1582649 wt_SRR1582650 wt_SRR1582651 TRINITY_DN562_c0_g1_i1 0.000 0.000 0.000 1846.402 1856.485 5781.775 TRINITY_DN355_c0_g1_i1 0.000 0.000 988.094 2064.647 0.000 1438.325 TRINITY_DN512_c0_g1_i1 0.000 942.340 857.337 0.000 0.000 0.000 TRINITY_DN229_c0_g1_i1 1133.767 0.000 0.000 2180.404 4494.880 3070.453 TRINITY_DN252_c0_g1_i1 588.191 618.376 553.033 1192.466 1884.940 2239.189 TRINITY_DN585_c0_g1_i1 0.000 0.000 0.000 1805.632 1876.280 2450.393 TRINITY_DN417_c0_g1_i1 0.000 0.000 0.000 0.000 3815.064 0.000 TRINITY_DN453_c0_g1_i1 0.000 0.000 0.000 963.468 1997.034 2648.649 TRINITY_DN620_c0_g1_i1 815.183 1183.354 1038.497 862.938 307.195 0.000 TRINITY_DN99_c0_g1_i1 549.958 580.382 0.000 560.178 0.000 1385.479 TRINITY_DN300_c0_g1_i1 0.000 1692.066 1582.840 0.000 1633.715 0.000 TRINITY_DN283_c0_g1_i1 0.000 0.000 0.000 2509.538 871.787 1118.658 TRINITY_DN80_c0_g1_i1 517.487 573.320 1372.092 1398.262 1201.176 865.462 TRINITY_DN460_c0_g1_i1 352.570 0.000 335.331 2582.546 392.798 1695.573 TRINITY_DN604_c0_g1_i1 1207.129 0.000 1112.027 0.000 0.000 0.000 TRINITY_DN472_c0_g1_i1 827.918 1773.521 784.819 2147.171 1368.051 1012.131 TRINITY_DN621_c0_g1_i1 552.234 405.177 707.408 592.076 422.986 1256.485 TRINITY_DN553_c0_g1_i1 491.036 1042.954 463.655 504.082 0.000 1222.161 TRINITY_DN615_c0_g1_i1 0.000 989.753 902.430 0.000 0.000 2596.428  These are the normalized expression values, which have been further cross-sample normalized using TMM normalization to adjust for any differences in sample composition. TMM normalization assumes that most transcripts are not differentially expressed, and linearly scales the expression values of samples to better enforce this property. TMM normalization is described in A scaling normalization method for differential expression analysis of RNA-Seq data, Robinson and Oshlack, Genome Biology 2010. We use the TMM-normalized expression matrix when plotting expression values in heatmaps and other expression analyses. Rinse and repeat: Generate the ‘gene’ count and expression matrices It’s useful to perform certain downstream analyses, such as differential expression, based on ‘gene’ level features in addition to the transcript (isoform) level features. The above RSEM quantitation generated ‘gene’ expression estimates in addition to the ‘isoform’ estimates. The ‘gene’ estimates are in output files named ‘.genes.results’ instead of the ‘.isoforms.results’, and the output formats are similar. You should now be in the ‘/home/ubuntu/workspace/trinity_workspace’ directory. (You can verify this with the ‘pwd’ command). Build a ‘gene’ expression count matrix and TMM-normalized expression matrix like so: $TRINITY_HOME/util/abundance_estimates_to_matrix.pl --est_method RSEM \
--out_prefix Trinity_genes \
GSNO_SRR1582648.RSEM/GSNO_SRR1582648.genes.results \
GSNO_SRR1582646.RSEM/GSNO_SRR1582646.genes.results \
GSNO_SRR1582647.RSEM/GSNO_SRR1582647.genes.results \
wt_SRR1582649.RSEM/wt_SRR1582649.genes.results \
wt_SRR1582651.RSEM/wt_SRR1582651.genes.results \
wt_SRR1582650.RSEM/wt_SRR1582650.genes.results


Now, you should find the following matrices in your working directory:

ls -1 | grep gene | grep matrix

Trinity_genes.TMM.EXPR.matrix
Trinity_genes.counts.matrix


We’ll use these later as a target of our DE analysis, in addition to our transcript matrices.

Another look at assembly quality statistics: ExN50

Although we outline above several of the reasons for why the contig N50 statistic is not a useful metric of assembly quality, below we describe the use of an alternative statistic - the ExN50 value, which we assert is more useful in assessing the quality of the transcriptome assembly. The ExN50 indicates the N50 contig statistic (as earlier) but restricted to the top most highly expressed transcripts. Compute it like so:

$TRINITY_HOME/util/misc/contig_ExN50_statistic.pl Trinity_trans.TMM.EXPR.matrix \ trinity_out_dir/Trinity.fasta > ExN50.stats  View the contents of the above output file: cat ExN50.stats | column -t #E min_expr E-N50 num_transcripts E1 28814.395 247 1 E3 28814.395 328 2 E4 18279.394 247 3 E5 18279.394 258 4 E6 17104.132 258 5 E7 16810.592 328 6 E8 13159.558 303 8 E9 12746.397 328 9 E10 12639.852 328 11 .... E35 3377.805 443 74 E36 3377.805 434 78 E37 3377.805 428 82 E38 3377.805 424 86 E39 3377.805 424 90 E40 3377.805 423 94 E41 3270.612 424 98 E42 3270.612 424 103 E43 2592.034 424 107 E44 2592.034 423 112 E45 2592.034 428 117 .... E69 1906.139 404 272 E70 1901.811 396 281 E71 1503.354 388 289 E72 1503.354 384 298 E73 1503.354 380 307 E74 1503.354 376 317 E75 1503.354 375 326 E76 1503.354 370 336 E77 1503.354 370 346 E78 1398.262 370 356 E79 1393.687 370 366 .... E89 948.242 329 483 E90 948.242 328 497 E91 948.242 320 511 E92 948.242 315 525 E93 948.242 313 540 E94 948.242 313 555 E95 948.242 309 571 E96 883.830 308 588 E97 806.939 305 607 E98 806.939 302 627 E99 608.064 297 650 E100 0.021 285 689  The above table indicates the contig N50 value based on the entire transcriptome assembly (E100), which is a small value (285). By restricting the N50 computation to the set of transcripts representing the top most 65% of expression data, we obtain an N50 value of 420. Try plotting the ExN50 statistics: $TRINITY_HOME/util/misc/plot_ExN50_statistic.Rscript ExN50.stats

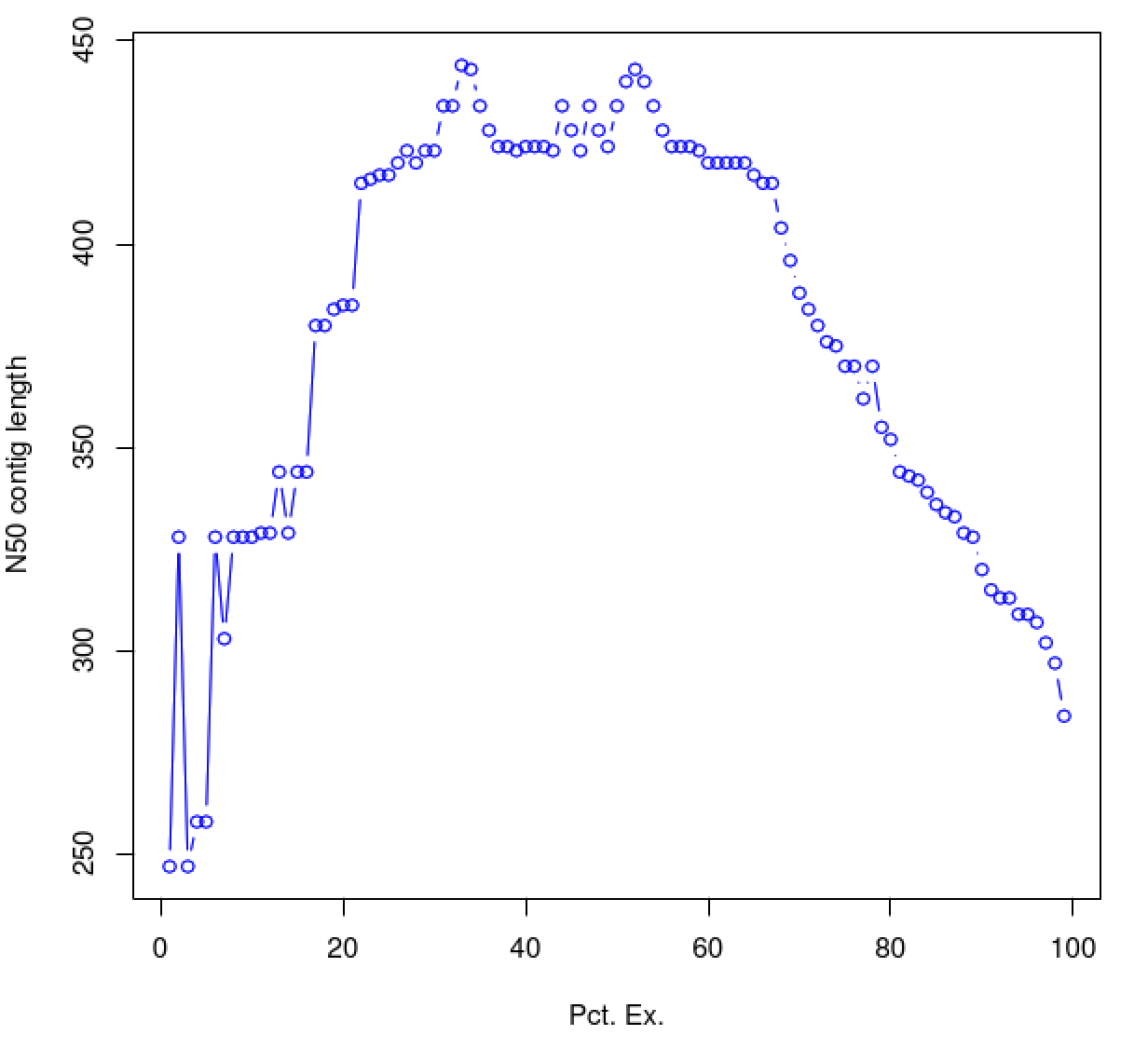

As you can see, the N50 value will tend to peak at a value higher than that computed using the entire data set. With a high quality transcriptome assembly, the N50 value should peak at ~90% of the expression data, which we refer to as the E90N50 value. Reporting the E90N50 contig length and the E90 transcript count are more meaningful than reporting statistics based on the entire set of assembled transcripts. Remember the caveat in assembling this tiny data set. A plot based on a larger set of reads looks like so:

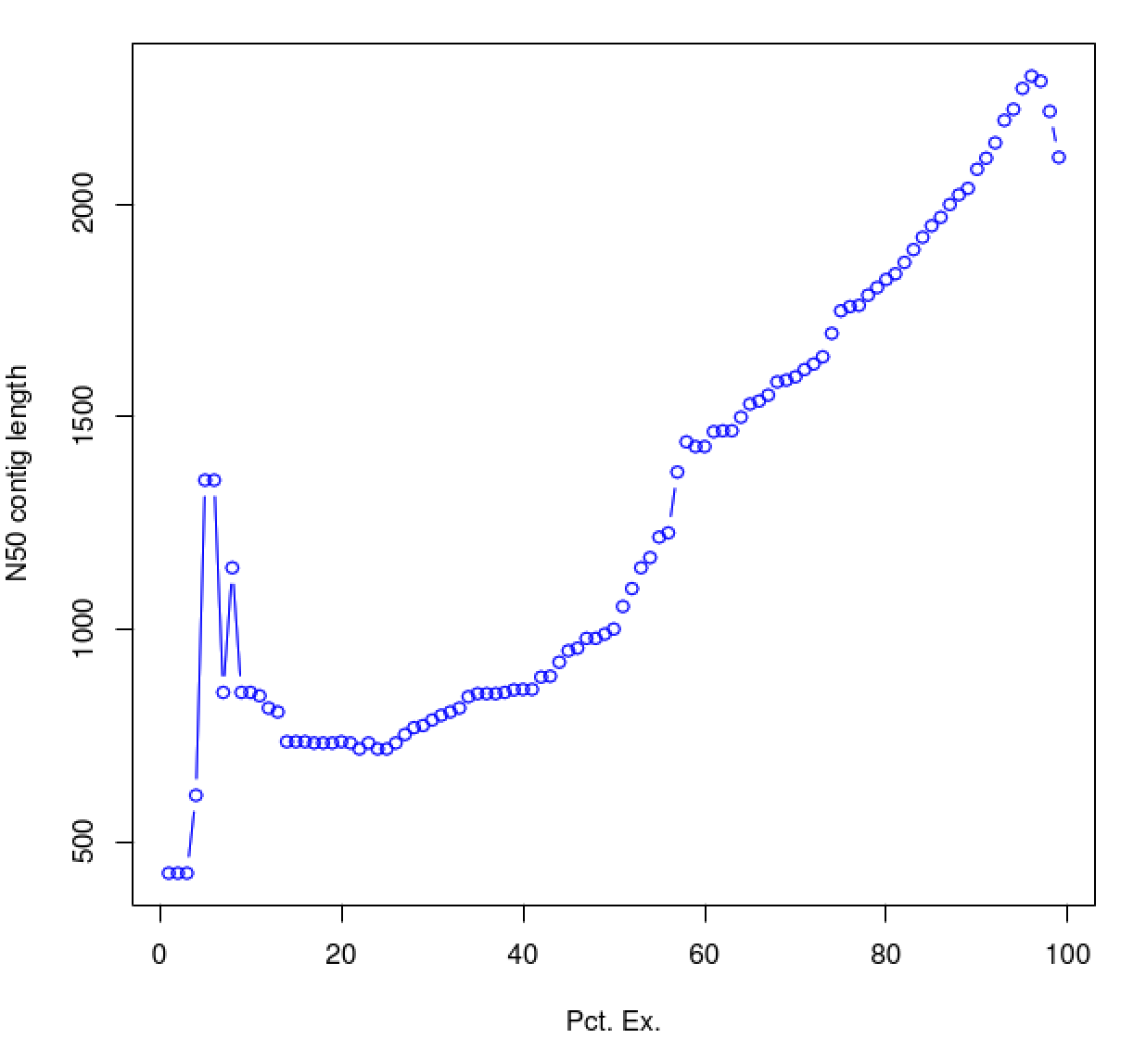

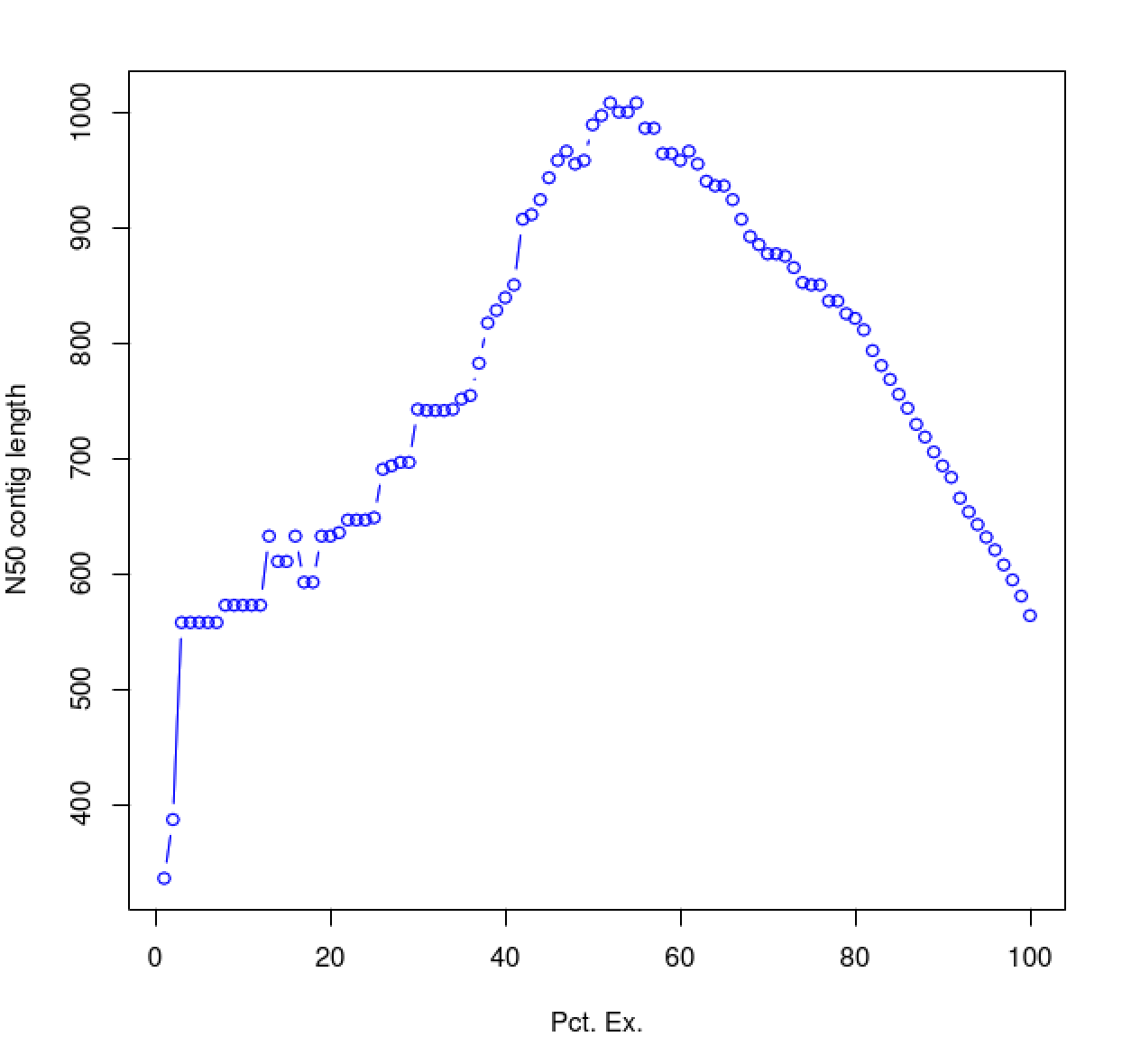

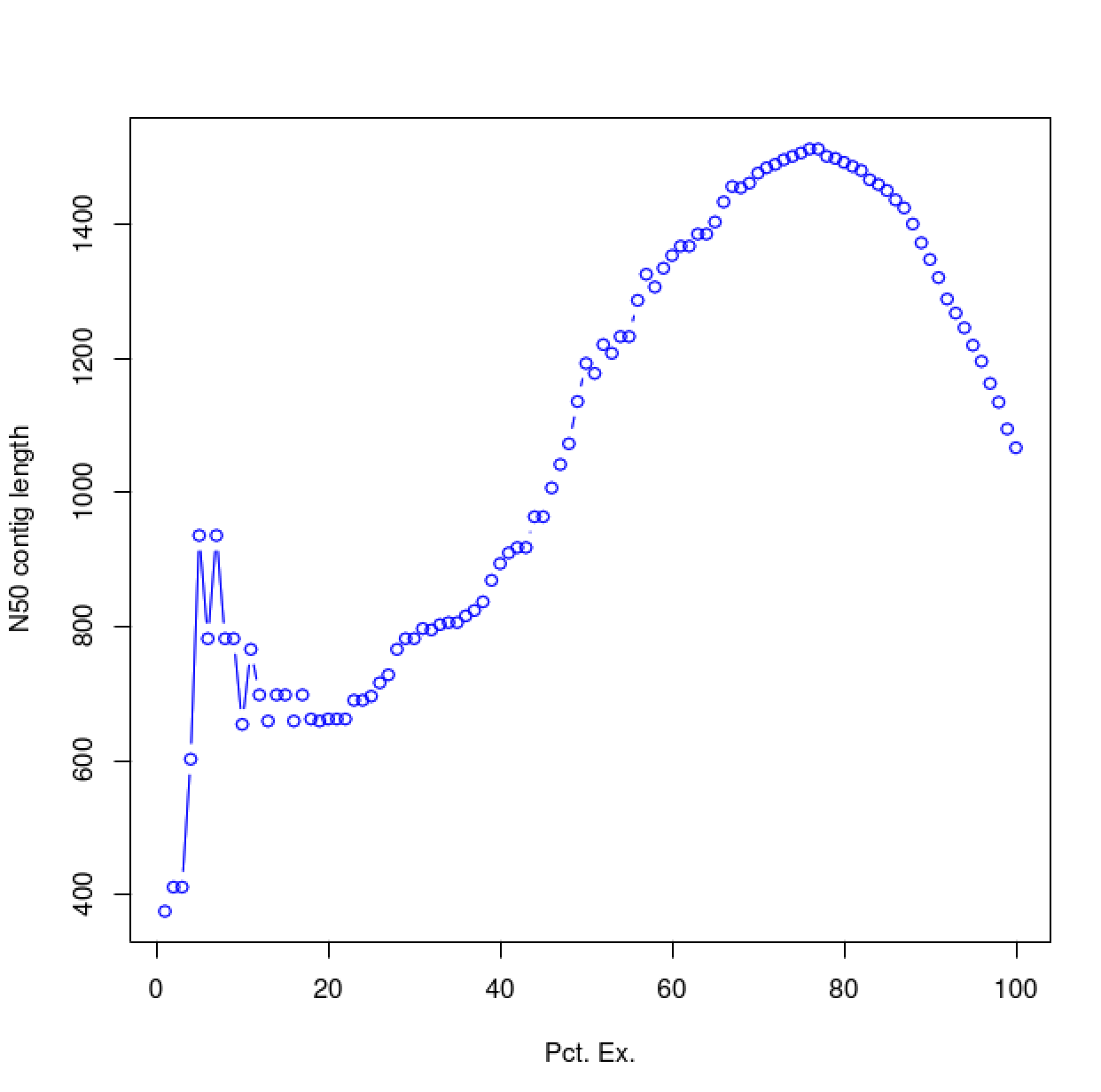

You can see that as you sequence deeper, you’ll end up with an assembly that has an ExN50 peak that approaches the use of ~90% of the expression data.

Using IGV to examine read support for assembled transcripts

Every assembled transcript is only as valid as the reads that support it. If you ever want to examine the read support for one of your favorite transcripts, you could do this using the IGV browser. Earlier, when running RSEM to estimate transcript abundance, we generated bam files containing the reads aligned to the assembled transcripts.

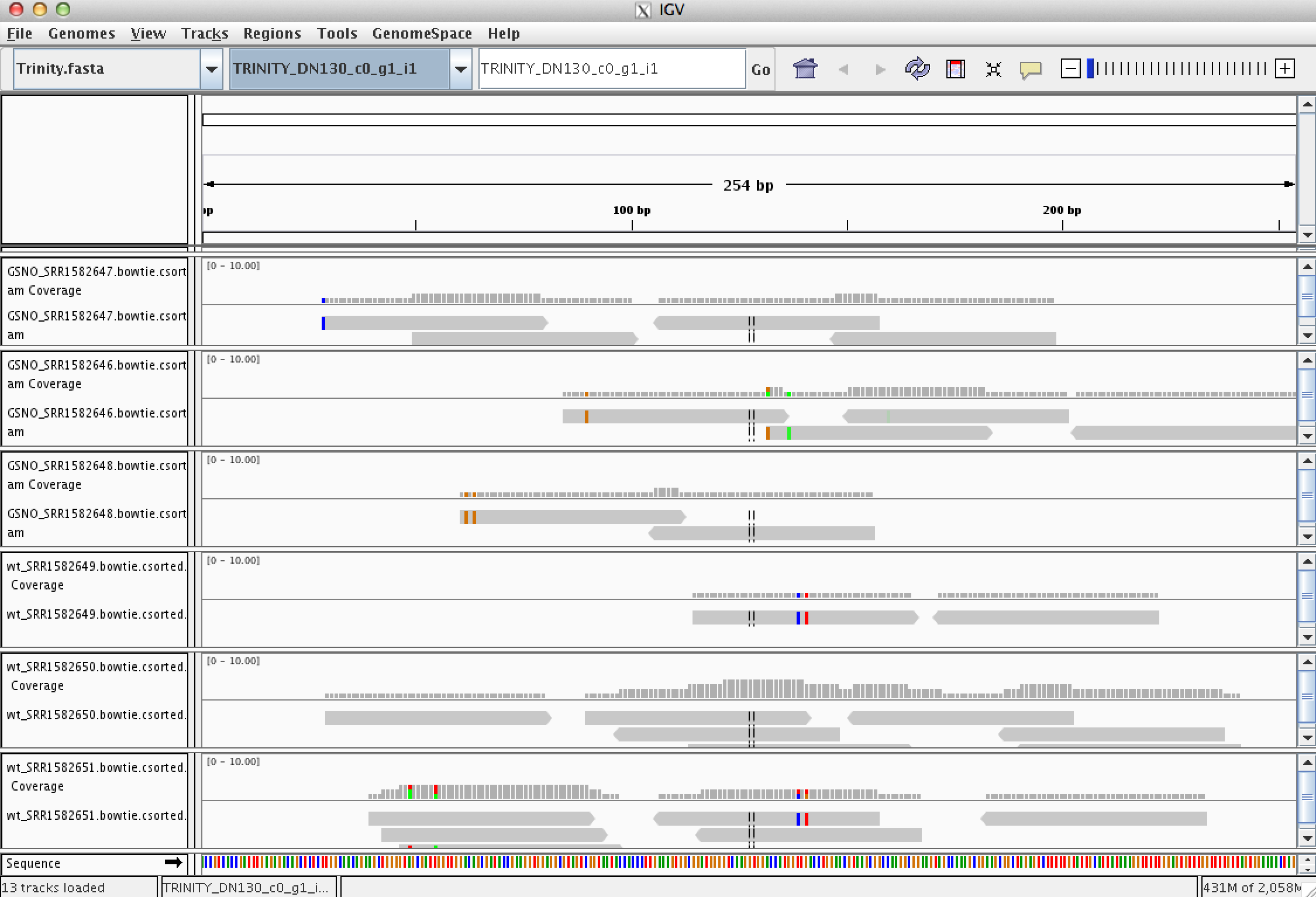

Launch IGV from your desktop, load the ‘trinity_out_dir/Trinity.fasta’ file as the ‘genome’, and then load up the ‘bowtie2.coordSorted.bam’ file generated earlier. Note, IGV will require that you have an index for the bam file (a ‘.bai’ file). To generate this, use the ‘samtools index’ like so:

Instructions for doing all of this are provided below:

# index the bam file
samtools index bowtie2.coordSorted.bam


bowtie2.coordSorted.bam
bowtie2.coordSorted.bam.bai
trinity_out_dir/Trinity.fasta


    menu 'Genomes -> Load Genome from File'
select Trinity.fasta
select bowtie2.coordSorted.bam


Take some time to familiarize yourself with IGV. Look at a few transcripts and consider the read support. View the reads as pairs to examine the paired-read linkages (hint: right-click on the read panel, select ‘view as pairs’).

Differential Expression Using EdgeR

A plethora of tools are currently available for identifying differentially expressed transcripts based on RNA-Seq data, and of these, edgeR is one of the most popular and most accurate. The edgeR software is part of the R Bioconductor package, and we provide support for using it in the Trinity package.

Having biological replicates for each of your samples is crucial for accurate detection of differentially expressed transcripts. In our data set, we have three biological replicates for each of our conditions, and in general, having three or more replicates for each experimental condition is highly recommended.

Create a samples.txt file containing the contents below (tab-delimited), indicatingthe name of the condition followed by the name of the biological replicate.

Verify the contents of the file using ‘cat’:

Use your favorite unix text editor (eg. emacs, vim, pico, or nano) to create the file ‘samples.txt’ containing the tab-delimited contents below. Then verify the contents like so:

cat samples.txt

GSNO	GSNO_SRR1582648
GSNO	GSNO_SRR1582647
GSNO	GSNO_SRR1582646
WT	wt_SRR1582651
WT	wt_SRR1582649
WT	wt_SRR1582650


Here’s a trick to verify that you really have tab characters as delimiters:

cat -te samples.txt

GSNO^IGSNO_SRR1582647$GSNO^IGSNO_SRR1582646$
GSNO^IGSNO_SRR1582648$WT^Iwt_SRR1582649$
WT^Iwt_SRR1582650$WT^Iwt_SRR1582651$


There, you should find ‘^I’ at the position of a tab character, and you’ll find ‘$’ at the position of a return character. This is invaluable for verifying contents of text files when the formatting has to be very precise. If your view doesn’t look exactly as above, then you’ll need to re-edit your file and be sure to replace any space characters you see with single tab characters, then re-examine it using the ‘cat -te’ approach. The condition name (left column) can be named more or less arbitrarily but should reflect your experimental condition. Importantly, the replicate names (right column) need to match up exactly with the column headers of your RNA-Seq counts matrix. To detect differentially expressed transcripts, run the Bioconductor package edgeR using our counts matrix: $TRINITY_HOME/Analysis/DifferentialExpression/run_DE_analysis.pl \
--matrix Trinity_trans.counts.matrix \
--samples_file samples.txt \
--method edgeR \
--output edgeR_trans


Examine the contents of the edgeR_trans/ directory.

ls -ltr edgeR_trans/

-rw-rw-r-- 1 genomics genomics  1051 Jan  9 16:48 Trinity_trans.counts.matrix.GSNO_vs_WT.GSNO.vs.WT.EdgeR.Rscript
-rw-rw-r-- 1 genomics genomics 60902 Jan  9 16:48 Trinity_trans.counts.matrix.GSNO_vs_WT.edgeR.DE_results
-rw-rw-r-- 1 genomics genomics 18537 Jan  9 16:48 Trinity_trans.counts.matrix.GSNO_vs_WT.edgeR.DE_results.MA_n_Volcano.pdf


The files ‘*.DE_results’ contain the output from running EdgeR to identify differentially expressed transcripts in each of the pairwise sample comparisons. Examine the format of one of the files, such as the results from comparing Sp_log to Sp_plat:

head edgeR_trans/Trinity_trans.counts.matrix.GSNO_vs_WT.edgeR.DE_results | column -t

logFC              logCPM            PValue                FDR
TRINITY_DN530_c0_g1_i1  8.98959066402695   13.1228060448362  8.32165055033775e-54  5.54221926652494e-51
TRINITY_DN589_c0_g1_i1  4.89839016049723   13.2154341051504  7.57411107973887e-53  2.52217898955304e-50
TRINITY_DN44_c0_g1_i1   2.69777851490106   14.1332252828559  5.23937214153746e-52  1.16314061542132e-49
TRINITY_DN219_c0_g1_i1  5.96230500956404   13.4919132973162  5.11512415417842e-51  8.51668171670708e-49
TRINITY_DN513_c0_g1_i1  5.67480055313841   12.8660937412604  1.54064866426519e-44  2.05214402080123e-42
TRINITY_DN494_c0_g1_i1  8.97722926993194   13.108274725098   3.6100707178792e-44   4.00717849684591e-42
TRINITY_DN365_c0_g1_i1  2.71537635410452   14.0482419858984  8.00431159168039e-41  7.61553074294163e-39
TRINITY_DN415_c0_g1_i1  6.96733684710045   12.875060733337   3.67004658844109e-36  3.05531378487721e-34
TRINITY_DN59_c0_g1_i1   -3.57509574692798  13.1852604213653  3.74452542871713e-30  2.77094881725068e-28


These data include the log fold change (logFC), log counts per million (logCPM), P- value from an exact test, and false discovery rate (FDR).

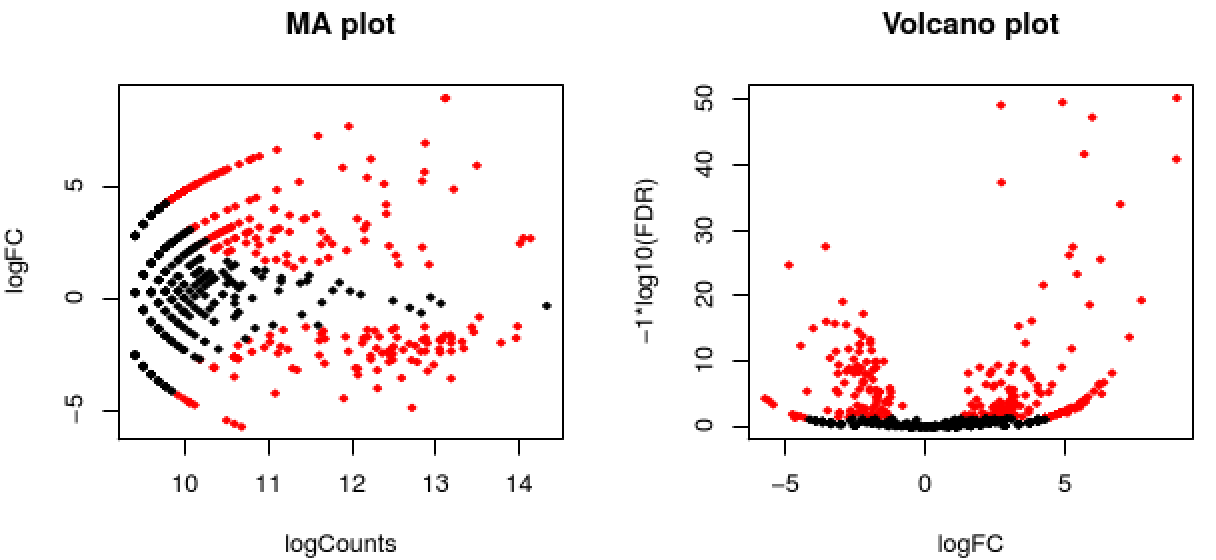

The EdgeR analysis above generated both MA and Volcano plots based on these data.

The red data points correspond to all those features that were identified as being significant with an FDR <= 0.05.

Trinity facilitates analysis of these data, including scripts for extracting transcripts that are above some statistical significance (FDR threshold) and fold-change in expression, and generating figures such as heatmaps and other useful plots, as described below.

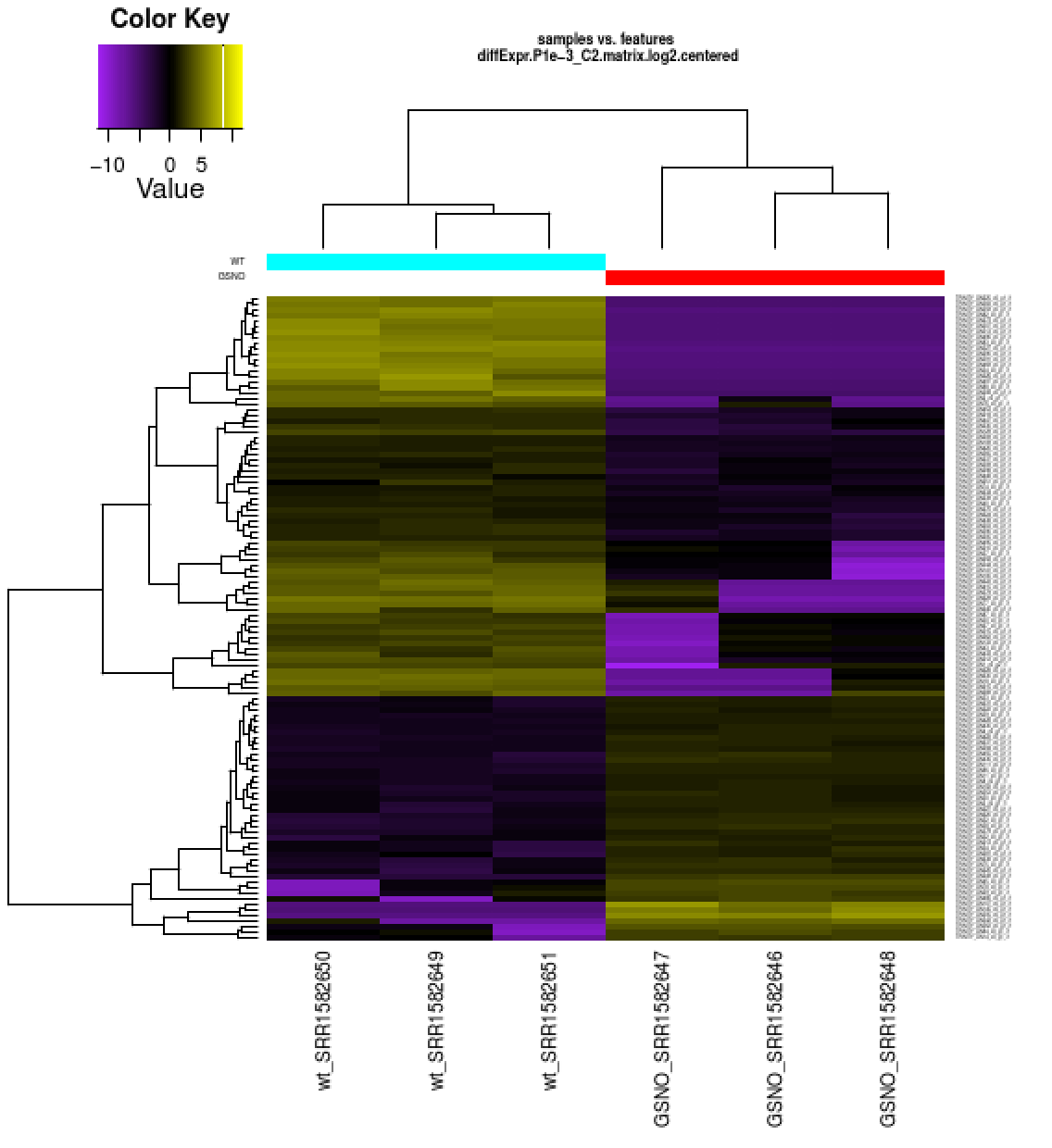

Extracting differentially expressed transcripts and generating heatmaps

Now let’s perform the following operations from within the edgeR_trans/ directory. Enter the edgeR_trans/ dir like so:

cd edgeR_trans/


Extract those differentially expressed (DE) transcripts that are at least 4-fold differentially expressed at a significance of <= 0.001 in any of the pairwise sample comparisons:

$TRINITY_HOME/Analysis/DifferentialExpression/analyze_diff_expr.pl \ --matrix ../Trinity_trans.TMM.EXPR.matrix \ --samples ../samples.txt \ -P 1e-3 -C 2  The above generates several output files with a prefix diffExpr.P1e-3_C2’, indicating the parameters chosen for filtering, where P (FDR actually) is set to 0.001, and fold change (C) is set to 2^(2) or 4-fold. (These are default parameters for the above script. See script usage before applying to your data). Included among these files are: ‘diffExpr.P1e-3_C2.matrix’ : the subset of the FPKM matrix corresponding to the DE transcripts identified at this threshold. The number of DE transcripts identified at the specified thresholds can be obtained by examining the number of lines in this file. wc -l diffExpr.P1e-3_C2.matrix  Note, the number of lines in this file includes the top line with column names, so there are actually 1 fewer DE transcripts at this 4-fold and 1e-3 FDR threshold cutoff. Also included among these files is a heatmap ‘diffExpr.P1e-3_C2.matrix.log2.centered.genes_vs_samples_heatmap.pdf’ as shown below, with transcripts clustered along the vertical axis and samples clustered along the horizontal axis. View the plot ‘diffExpr.P1e-3_C2.matrix.log2.centered.genes_vs_samples_heatmap.pdf’ from your web browser The expression values are plotted in log2 space and mean-centered (mean expression value for each feature is subtracted from each of its expression values in that row), and shows upregulated expression as yellow and downregulated expression as purple. Extract transcript clusters by expression profile by cutting the dendrogram Extract clusters of transcripts with similar expression profiles by cutting the transcript cluster dendrogram at a given percent of its height (ex. 60%), like so: $TRINITY_HOME/Analysis/DifferentialExpression/define_clusters_by_cutting_tree.pl \
--Ptree 60 -R diffExpr.P1e-3_C2.matrix.RData

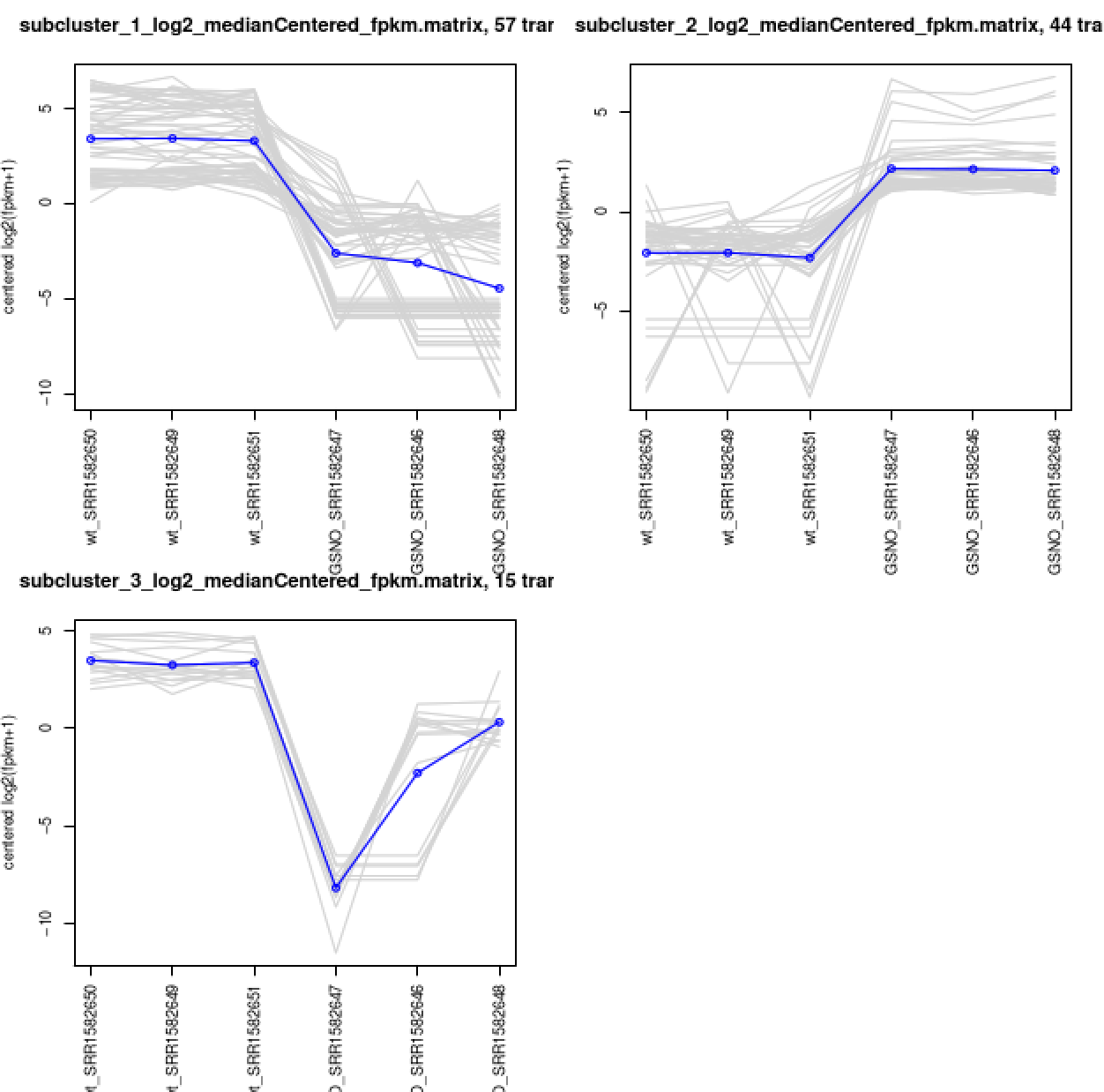

This creates a directory containing the individual transcript clusters, including a pdf file that summarizes expression values for each cluster according to individual charts:

Rinse & repeat: DE analysis at the gene level

You can do all the same analyses as you did above at the gene level. For now, let’s just rerun the DE detection step, since we’ll need the results later on for use with TrinotateWeb. Also, it doesn’t help us to study the ‘gene’ level data with this tiny data set (yet another disclaimer) given that all our transcripts = genes, since we didn’t find any alternative splicing variants. With typical data sets, you will have alterantively spliced isoforms identified, and performing DE analysis at the gene level should provide more power for detection than at the isoform level. For more info about this, I encourage you to read this paper.

Before running the gene-level DE analysis, be sure to back out of the current edgeR_trans/ directory like so:

cd ../


Be sure you’re in your base working directory:

pwd

/home/ubuntu/workspace/trinity_workspace


Now, run the DE analysis at the gene level like so:

\$TRINITY_HOME/Analysis/DifferentialExpression/run_DE_analysis.pl \
--matrix Trinity_genes.counts.matrix \
--samples_file samples.txt \
--method edgeR \
--output edgeR_gene


You’ll now notice that the edgeR_gene/ directory exists and is populated with similar files.

ls -ltr edgeR_gene/


Let’s move on and make use of those outputs later. With your own data, however, you would normally run the same set of operations as you did above for the transcript-level DE analyses.
